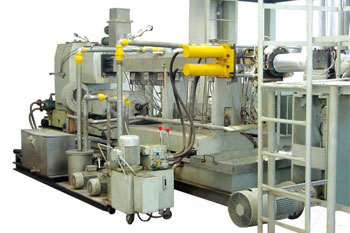

HTY series parallel counter-rotating twin screw extruder are mainly used for ally modification aiming at good elongation on the materials and this results in good dispersion in compounding.

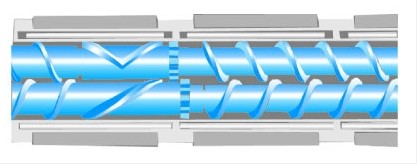

Screw elements are assembled in modular design
High speed, high torque and large L/D ratio
Uniform melt temperature distribution
Better feeding abilities for bulk materials
Large surface-to-volume ratio
Applying Area
Devolatilization and exhaustion
Reaction extrusion
Wood and plastics compounding, pelletization and extrusion
Recycled pelletization from PET, BOPET, BOPP films
Cable materials with non-halogen and low smoke
High concentration colored master batch
Heat sensitive materials.
Technical Parameter
Type |
Screw Dia.(mm) |
L/D |
Screw Speed (rpm) |
Motor Power (kw) |
Capacity (kg/h) |
HTY30 |
30 |
32-44 |
300-500 |
5.5-11 |
10-50 |
HTY35 |
35 |
32-64 |
300-500 |
7.5-15 |
30-80 |
HTY60 |
60 |
32-64 |
300-500 |
45-75 |
150-240 |
HTY75 |
75 |
32-64 |
300-500 |
75-110 |
200-350 |
HTY90 |
90 |
32-64 |
300-400 |
160-220 |
750-1200 |
HTY110 |
110 |
32-64 |
300-400 |
220-280 |
400-800 |
HTY135 |
135 |
32-48 |
300 |
600 |
1000-2000 |
