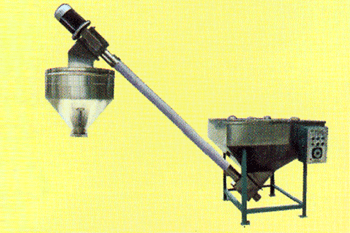

Spring Loader
Series ZJF plastic powder loader can be used for different kinds of extruders, conveying the powder from the storage tank to the hopper. The loop is controlled through the material level sensor achieving stable loading, labor-saving and safety protection.
Main Specifications
|
Model
|
ZJF100
|
ZJF300
|
ZJF700
|
|
Rated Capacity (Kg/h)
|
100
|
300
|
700
|
|
Hopper Volume（Kg)
|
100
|
120
|
150
|
|
Spring Diameter（mm)
|
30
|
36
|
59
|
|
Capacity Max.（Kg/h)
|
200
|
450
|
1000
|
|
Length of Conveying Tube and Spring（m)
|
3
|
3~5
|
3~5
|
|
Tank Volume（Kg)
|
120
|
150
|
200
|
|
Motor Power（KW）
|
1.1
|
1.1
|
2.75
|
|
Dimensions（mm)
|
850/620/740
|
905/655/840
|
950/950/960
|
|
Weight（Kg)
|
120
|
150
|
250
|
