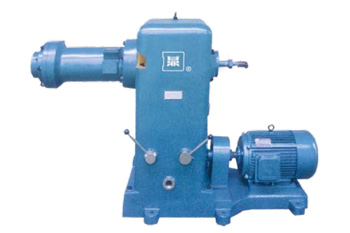

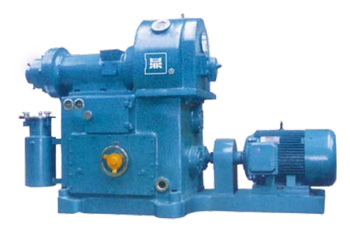

XJ Series Hot Feeding Extruder
This series of extruders are mainly used for press molding of rubber and producing semi-finished products with certain sectional configuration, such as tyre thread, inner tube, rubber hose, rubber strip and so on. These products can be used as sheath of steel wire cable and electrical wire.
Technical Parameter
|
Model
|
Screw Diameter (mm)
|
L/D
|
RPM (r/min)
|
Output(kg/h)
|
Driving Power(kw)
|
Weight(T)
|
Overall Dimension
(L×W×H mm)
|
|
XJ-30
|
Φ30
|
5.5:1
|
10-110
|
10
|
1.5
|
0.7
|
360×780×1050
|
|
XJ-65
|
Φ65
|
4:1
|
22,29,40,53
|
80
|
7.5
|
1.2
|
1600×675×1208
|
|
XJ-85
|
Φ85
|
5:1
|
21,32,41,61
|
270
|
11
|
2.
|
2050×735×1275
|
|
XJ-115
|
Φ115
|
4.8:1
|
20,33,46,60
|
400
|
22
|
3
|
2300×800×1370
|
|
XJ-150
|
Φ150
|
4.4:1
|
27-81
|
800
|
13.3-40
|
4.5
|
3585×814×1470
|
