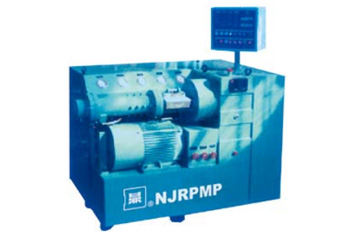

XJD Series Pin Type Cold Feeding Rubber Extruder
With the characteristics of high capacity, low material temperature, low electricity consumption, good mixing, uniform plasticization, this series of rubber extruder can be widely used for extruding rubber hose, inner tube, adhesive tape, chafer, sealing strip and other rubber products. It can also be used for hot feeding for small calendars.
Technical Parameter
|
Model
|
Screw Diameter(mm)
|
L/D
|
RPM(r/min)
|
Output(kg/h)
|
Driving Power(kw)
|
Weight(T)
|
Overall Dimension
(L×W×H mm)
|
|
XJD-50
|
Φ50
|
12:1
|
7-73
|
60
|
11
|
1.1
|
1550×1050×1500
|
|
XJD-65
|
Φ65
|
12:1
|
8-75
|
120
|
30
|
1.65
|
1900×800×1500
|
|
XJD-75
|
Φ75
|
14:1
|
6-60
|
180
|
37
|
1.7
|
2340×1150×1250
|
|
XJD-90
|
Φ90
|
12:1
|
7-67
|
400
|
55
|
2.5
|
2440×1000×1450
|
|
XJD-120
|
Φ120
|
16:1
|
5-50
|
1000
|
110
|
5
|
1600×1100×1000
|
