With excellent compounding, good self-cleaning, flexible modular composition, Parallel Co-rotating Screw Extruder could be applied in different kinds of processing. It can be widely applied in polymers processing, food processing, chemical product and all kinds of macromolecular materials processing.

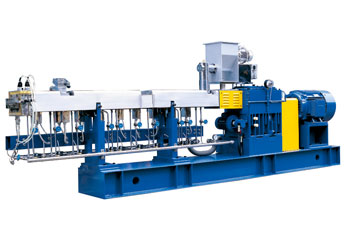

Twin Screw Extruder is composed of drive part and extruder part.

The drive part includes gearbox and motor. As per the specification of machine, customer could choose AC motor or DC motor. Gearbox takes parallel triaxial structure with alarm functions when oil level too low or filter blocking overpressure.

The extruder system includes core bar, barrel and screws. It takes modular principles. With all kinds of common pressing elements include screw elements of different ditches, kneader panel of different stagger angle arrangement, reverse screw elements and some common compounding elements, the closing barrel with L/D 4, feeding barrel and discharging barrel. As per different techniques, customers could require non-standard specifications, for example, with new type compounding elements, side feeding barrel and all kinds of fittings.

Customer could choose different kinds of pelletizer, water cooling strand pelletizer, cool air hot cutter, water ring face cutter and underwater cutter.

HT series -- HT25, HT30, HT37, HT47, HT60, HT75, HT95, total 7 types and 18 sub-types parallel co-rotating twin screw extruders. HT series extruders have the characteristics of high rotation, high torque and high output, which not only satisfy the market, but also shorten the quality and function gap from foreign equipments.

Technical Parameter　
　

Types with* are our specialities which are mostly used for top-class masterbatch, glass-fibre reinforced modification extrusion.
