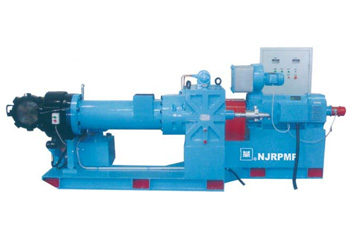

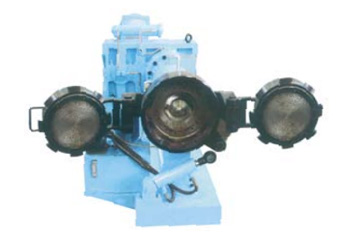

XJL Series Strainer
It's used for filtering impurities from reclaimed rubber. It can be used for filtering in sole and inner tube manufacturers.With hardened tooth-surface reducer, hydraulic station for die and double die head, this series of machine has the advantages of high automation and high efficiency.
Technical Parameter
|
Model
|
Screw Diameter(mm)
|
L/D
|
RPM(r/min)
|
Output(kg/h)
|
Driving Power(kw)
|
Weight(T)
|
Overall Dimension
(L×W×H mm)
|
|
XJL-150
|
Φ150
|
5:1
|
43
|
450
|
30
|
2.9
|
2960×1110×1950
|
|
XJL-200
|
Φ200
|
5:1
|
5-50
|
800
|
55
|
3.6
|
3600×1000×1380
|
|
XJL-250
|
Φ250
|
4.5:1
|
5-45
|
1800
|
90
|
5
|
3800×1300×1400
|
